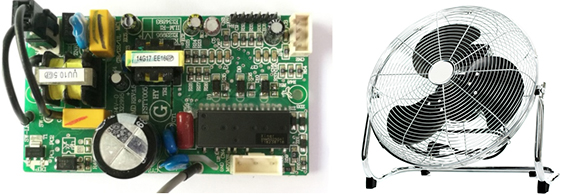

Program Highlights:
Key:
| IPM | XNM50250AT (ATS) | 1PCS |
| IPM | XNM03H54A5 | 3PCS |
Performance metrics:
| Parameters | Metrics |
| Input voltage | 220V AC±20% |
| Input frequency | 50Hz±10% |
| Maximum output power | 50W |
| Modulation frequency | 15KHz |
| Maximum speed | 1000 RPM |
| control method | FOC |
| Current sampling method | Single resistance |
| Protective function | Overcurrent, overvoltage, undervoltage, overtemperature, stall protection |
| Length, width and height | 95mm*55mm*30mm |
